Total Station STEC AXIS 9 dilengkapi dengan layar sentuh resolusi tinggi 5,0 inci dan berjalan pada sistem operasi Android 9, yang menampilkan program ikonik dan grafis onboard.

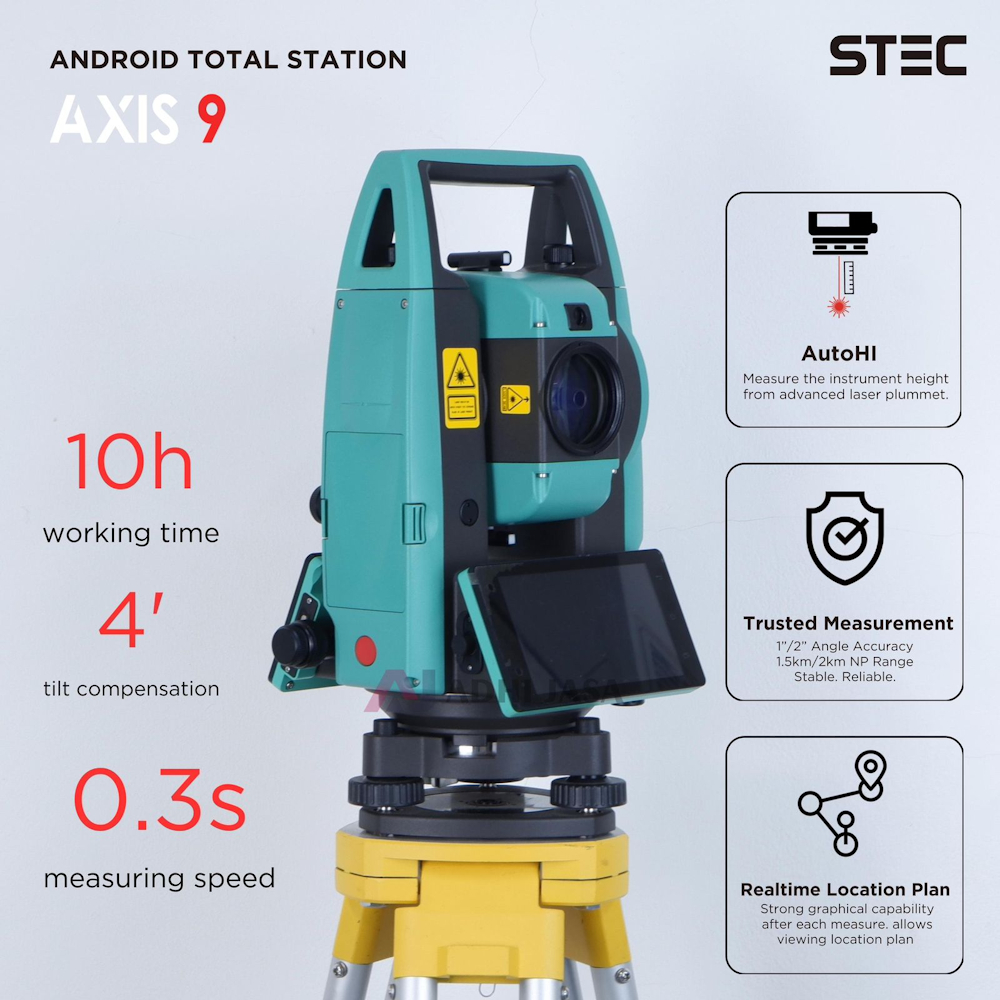

1 "/2"
angle accuracy
4'
tilt compensation
10 h
working time
1/1.5/2km
non-prism range
1+1/2+2ppm
distance accuracy
0.3 s
measuring speed
TRUSTED MEASUREMENT
- 1000M, 1500M, 2000M NP Range Optional
- 1”/2” Angular Accuracy
- 1+1ppm/2+2ppm Distance Accuracy

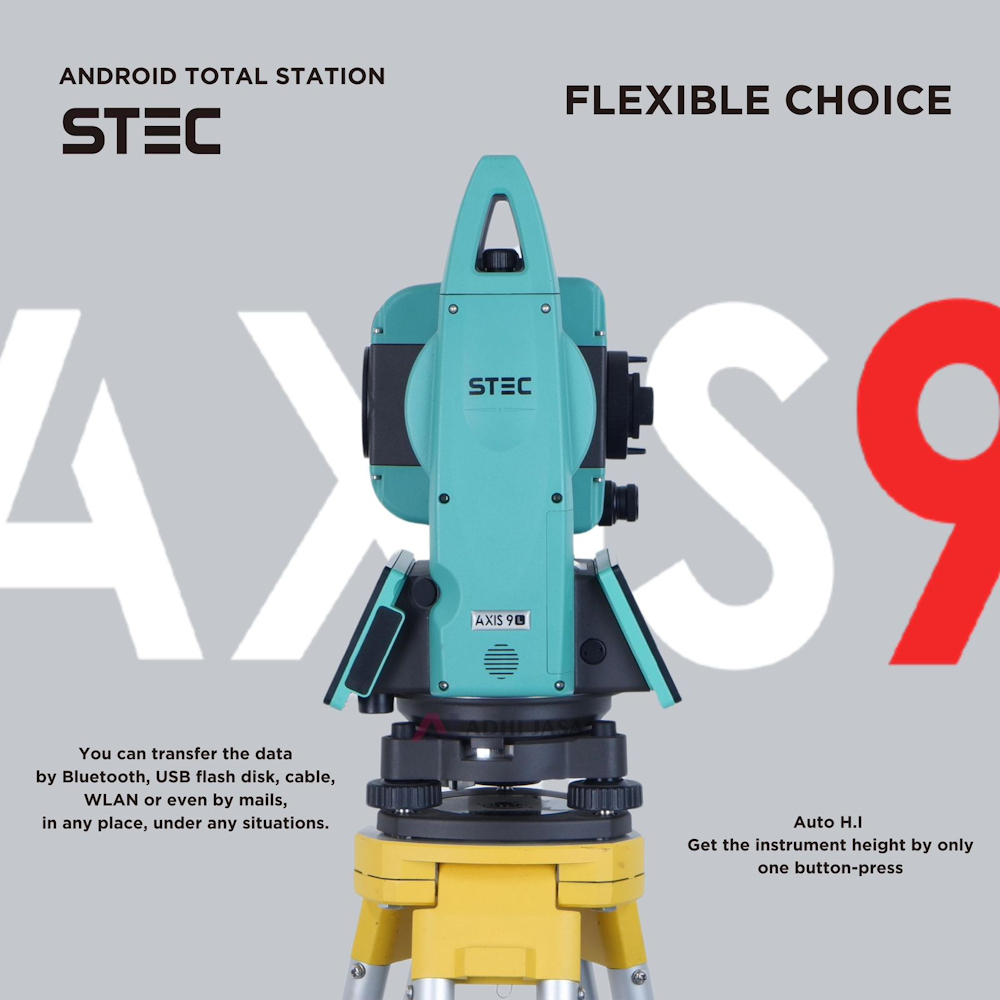

FLEXIBLE CHOICE
- Auto H.I | Get the instrument height by only one button-press.
- Guide Light for Easier Stake Out
- Camera Option
DATA TRASNFER IS EASIER THAN EVER
You can transfer the data by Bluetooth, USB flash disk, cable, WLAN or even by mails, in any place, under any situations.

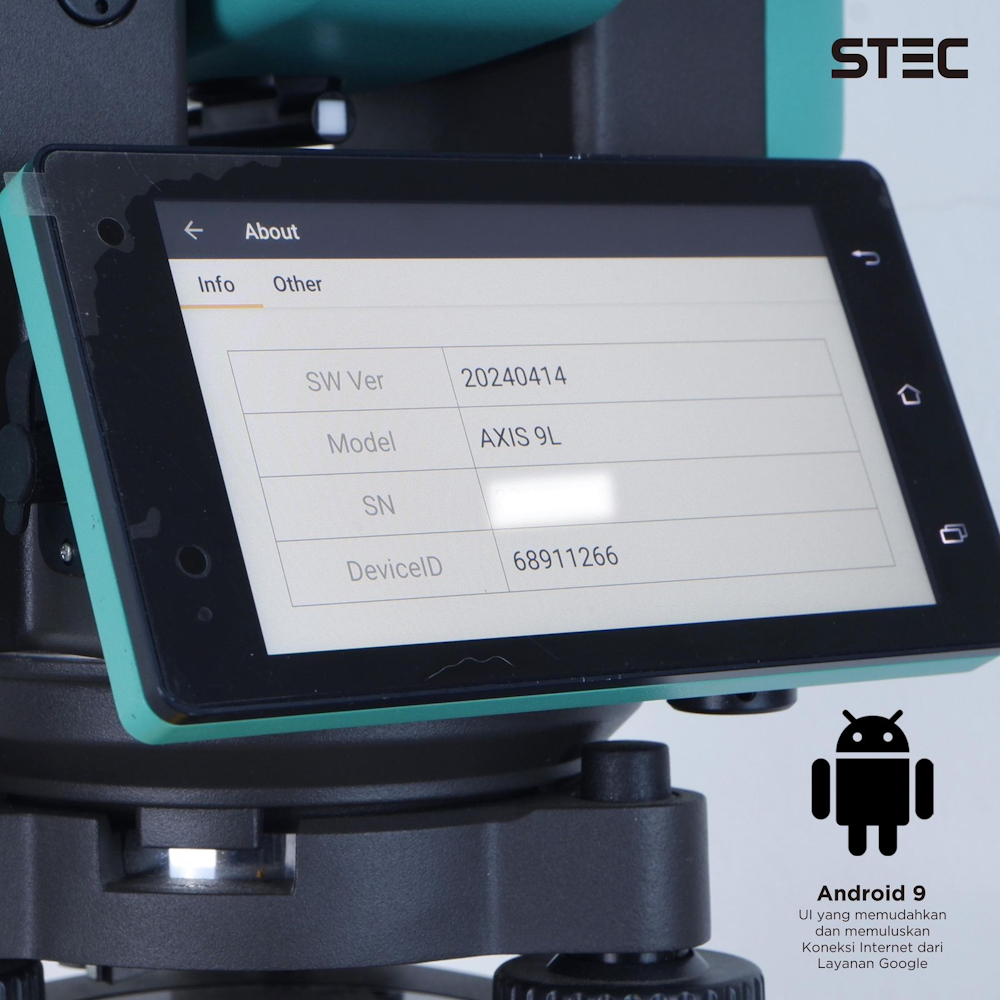

ANDROID O.S
- Easy and smooth onboard program
- Google Service available
ICONIC ONBOARD SOFTWARE
Strong graphical capability allows viewing after each measure.
Kelengkapan Total Station Android Laser STEC Axis 9
- 1x Unit Total Station Android Laser STEC Axis 9
2x Battery Li-50 5000mAh - 1x Charger NC-III
- 1x Kabel Data
- 1x Tool Kit
- 1x Prism Sheet
- 1x Protection For Total Station
- 2x Tripod Statif Alumunium
- 1x Stik Pole Jalon Survey
- 1x Prisma Polygon / ADS
- 1x Prisma Single Target / AK
Spesifikasi Total Station STEC AXIS 9
| SYSTEM | |
| OS | Android 9.0 |
| Processor | MT6735 |
| Internal Memory | RAM 3GB, ROM 32GB |
| TELESCOPIC | |
| Length | 154mm |
| Diameter | Telescopic: 45mm; EMD: 50mm |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30’ |
| Resolving Power | 3” |
| Minimum Focus | 1.5m |
| DISTANCE | |
| Single Prism Range | 5,000m |
| Accuracy | AXIS 9/9L: ±(2mm+2mm*D)m.s.e AXIS 9P/9i: ±(1mm+1mm*D)m.s.e |
| Non-prism Range | AXIS 9: 1,500m AXIS 9L: 2,000m AXIS 9P/9i: 1,000m |
| Accuracy | ±(3mm+2mm*D)m.s.e |
| Measuring Time | Fine: 0.3s; Normal: 0.2s |
| Meteorologic Correction | Auto Sensor |
| Prism Constant | Manual |
| ANGLE | |
| Accuracy | AXIS 9/9L: 2” AXIS 9P: 1“ |
| Method | Absolute Encoding |
| Detecting System | AXIS 9/9L: dual; AXIS 9P: quadruple; |
| Minimum Reading | 0.1”/1” |
| Diameter of Circle | 79mm |
| Vertical Angle 0° | Zenith: 0°; Horzontal: 0° |
| Unit | 360°/400gon/6400mil |
| DISPLAY | |
| Display Unit | 5” color touch LCD |
| No. of Displays | 2 |
| Buttons | 2 volume buttons, 1 power button on each display |
| GUIDE LIGHT | Availble on AXIS 9/9L/9P |
| Type | Red+yellow flashing LEDs |
| Wokring Range | 150m |
| CAMERA | Availble on AXIS 9i |
| Focal Length | 21mm (wide angle) |
| Field of View | Horizontal: ±7.04º; Vertical:±5.28º |
| Focus Mode | Fixed-focus |
| Resolution | 1280*720 |
| LASER PLUMMET – AutoHI | Availbel on AXIS 9L/9P/9i |
| Type | Class II red laser |
| Measuring Range | 0.6-2.0m |
| Minimum Reading | 1mm |
| Distance Accuracy | 3mm |
| Deviation | 0.6mm @ 1.5m height |
| Spot Diameter | 1.5mm @ 1.5m height |
| TILT CORRECTION | |
| Tilt Sensor | Dual axis |
| Method | Liquid electric |
| Range | 4’ |
| Resolution | 1” |
| LEVEL | |
| Plate Level | 30”/2mm |
| Circular Level | 8’/2mm |
| DATA INTERFACE | |

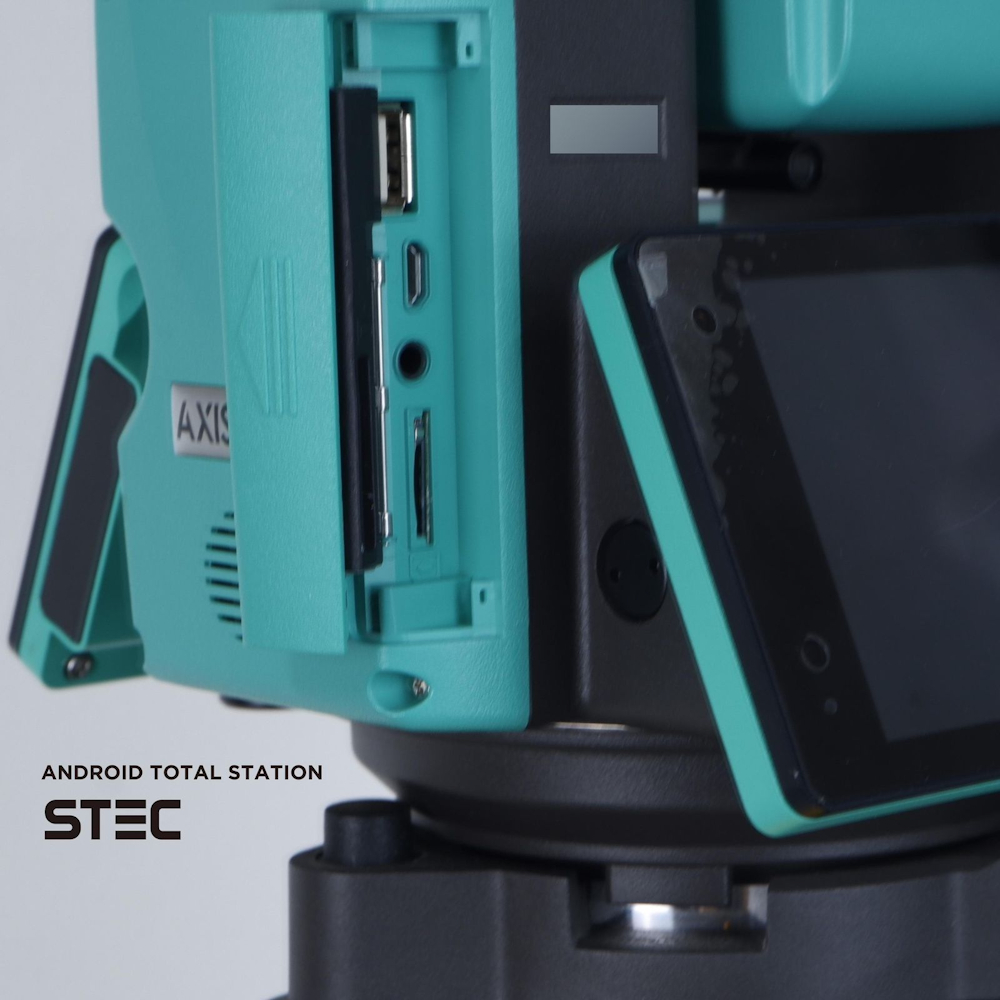

| Data Interface | USB2.0, MicroUSB, RS-232 |
| Wireless | Bluetooth 2.0/4.2, SIM card, Wi-Fi |
| GENERAL | |
| Quick-meas Button | Yes |
| Weight | 6kg |
| Dimension | 353 (H) * 206 (L): 200 (W) mm |
| Operating Temperature | -20°C to 50°C |
| Battery | Li-on battery, 7.4V, 5,000mAh |
| Water & Dust Proof | IP55 |
| Working Duration | 10h |
