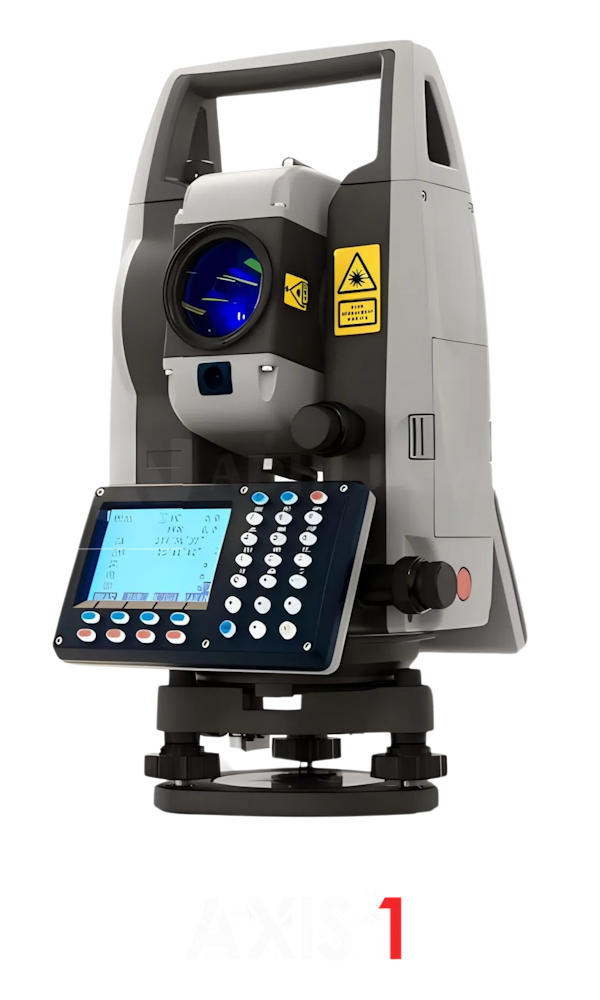

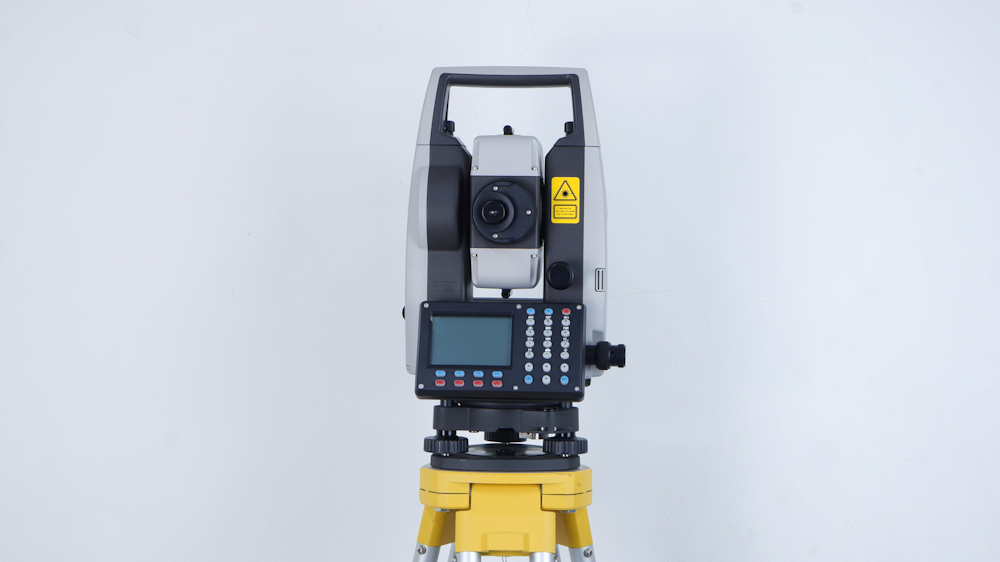

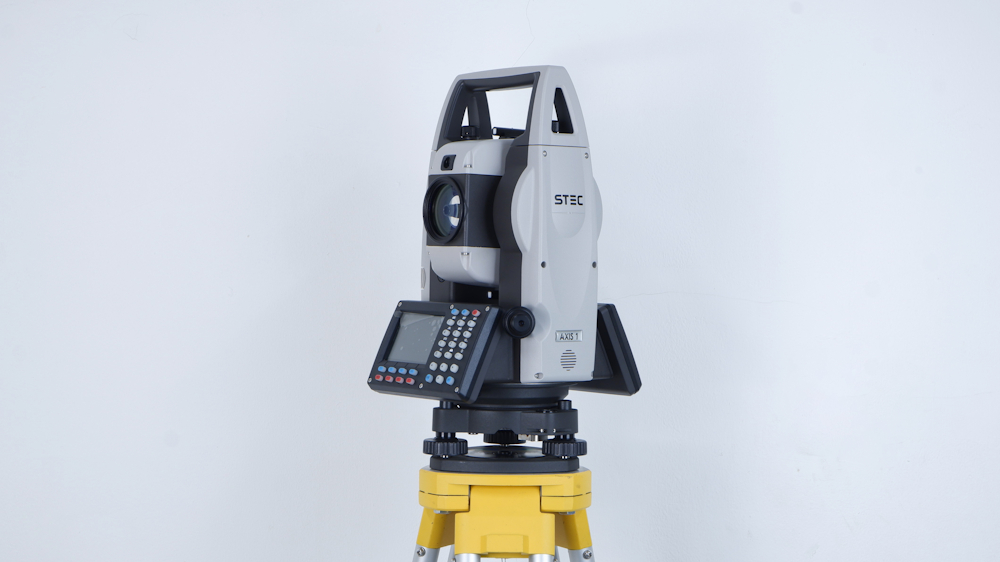

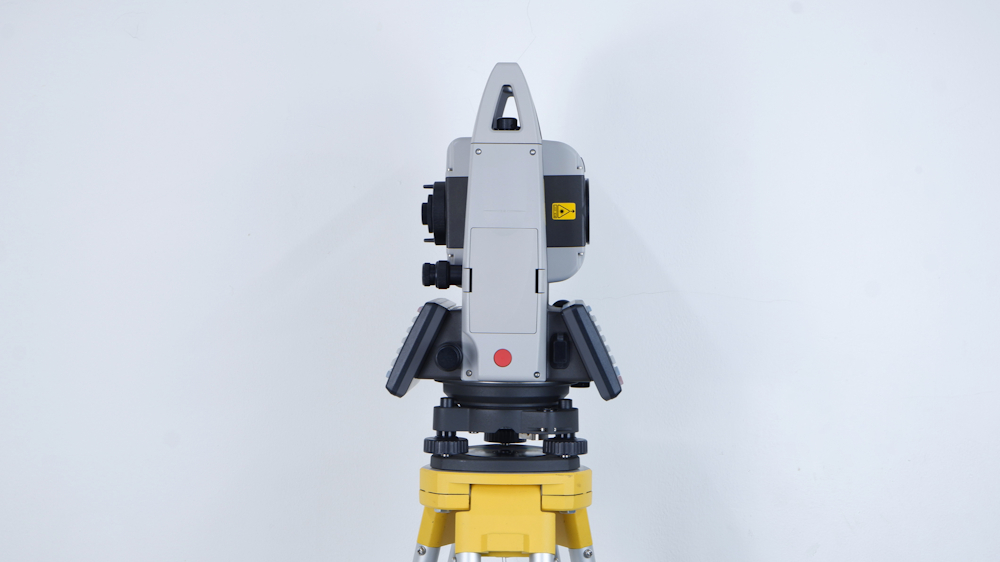

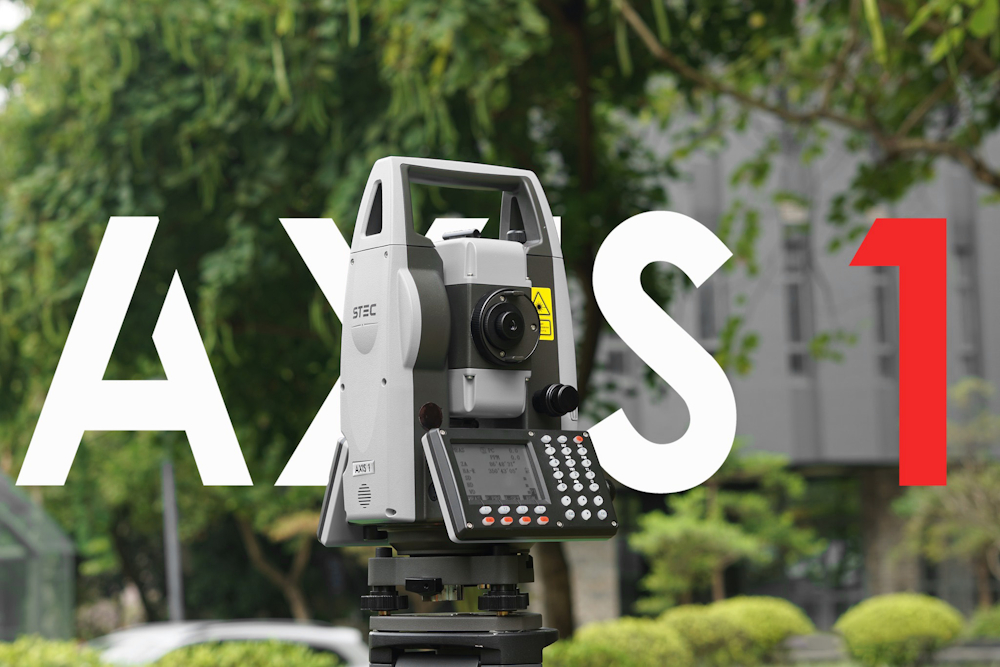

Dilengkapi dengan paket aplikasi yang canggih, alur kerja yang intuitif pada layar besar beresolusi tinggi, dan masa pakai baterai 16 jam+, Anda akan mendapatkan pengalaman yang luar biasa saat dilokasi kerja dengan Total Station Laser STEC AXIS 1.
2"
angle accuracy
4'
tilt compensation
16hr
working time
1.5/2 km
non-prism range
2+2ppm
distance accuracy
0.3 s
measuring speed

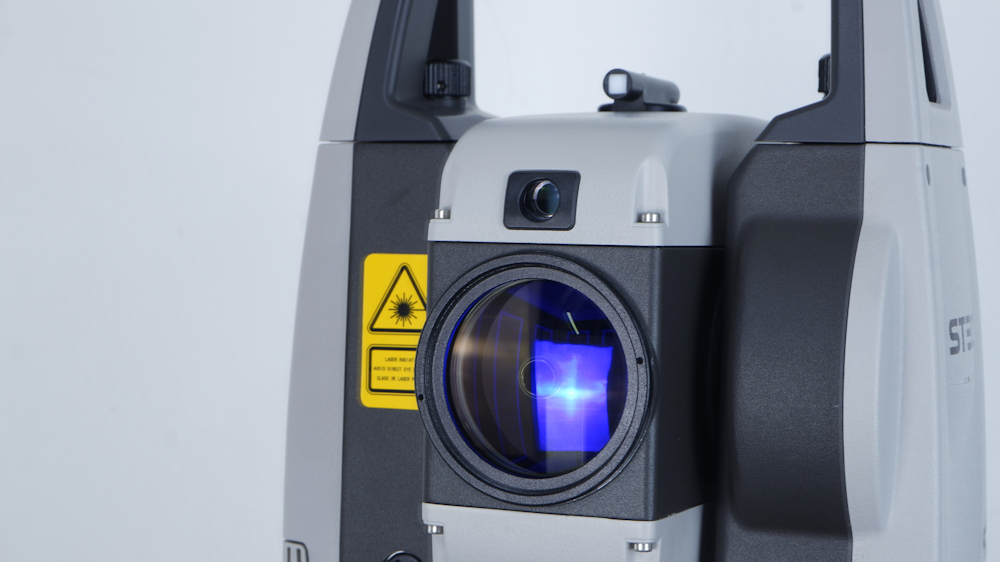

ULTRA FAST AND ADVANCED EDM
- 2″ angle accuracy
- 2mm+2ppm distance acccuracy
- 1.5/2.0km non-prism range
GUIDE LIGHT FOR EASIER STAKE OUT
The guide light is extremely visible for stake out, which boosts your working efficiency on site.

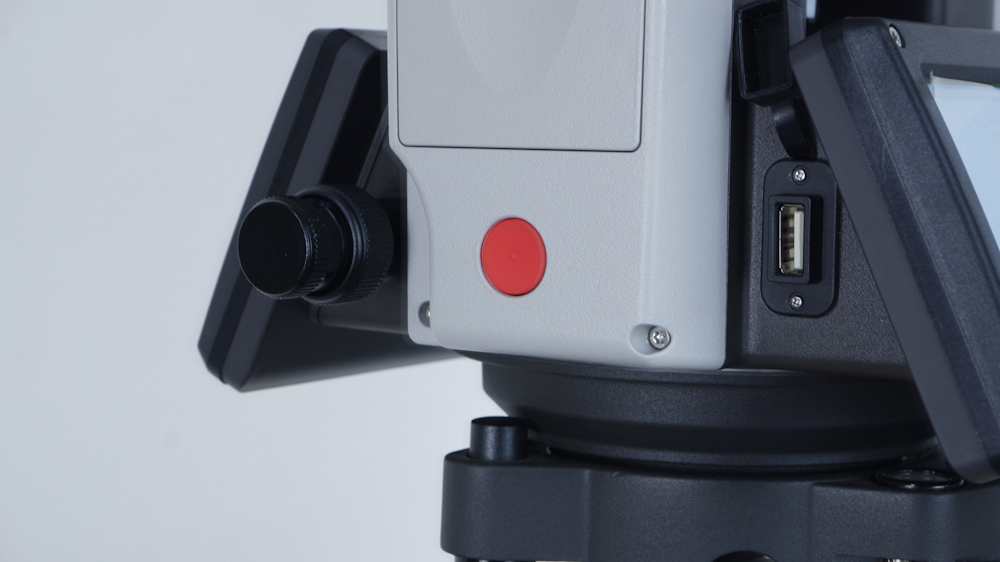

QUICK-MEAS BUTTON
Take a series of measurement without taking your eye off the telescope.
Also benefit for the measurement with gloves.

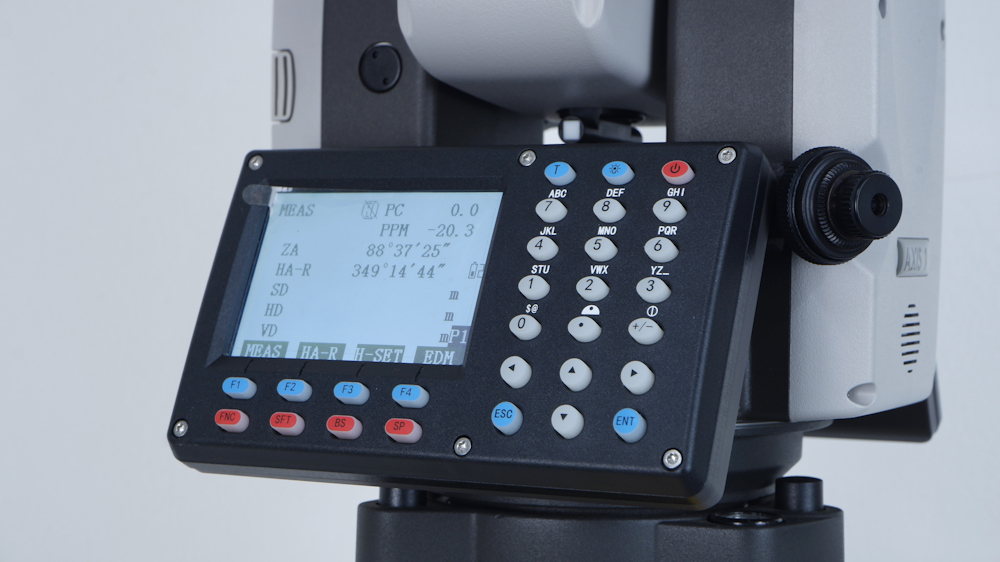

LARGER SCREEN, MORE INFORMATION
Clear and sharp LCD with 8 lines display shows abundant information on a 3.1″ screen.
- Easier access to the functions by user keys and shortcuts.
- Faster navigation with brilliant readability.
PRACITCAL ONBOARD PROGRAM
Axis 1 carries the unique programs like stake out arc, angle offset, point projection, roads, etc.
It delivers the best efficiency in a small and sleek design.
Kelengkapan Total Station Laser STEC Axis 1
- 1x Unit Total Station STEC Axis 1
- 2x Battery Li-30C
- 1x Charger Type-C
- 1x Cover Lens
- 1x TollKit
- 1x Sheet Prism
- 2x Tripod Statif Alumunium
- 1x Stik Pole Jalon Survey
- 1x Prisma Ploygon / Prisma ADS
- 1x Prisma Single Target / Prisma AK
Spesifikasi Total Station STEC AXIS 1
| Length | 154mm |
| Diameter | Telescopic: 45mm; EMD: 50mm |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30’ |
| Resolving Power | 3” |
| Minimum Focus | 1.5m |
| DISTANCE | |
| Single Prism Range | 5,000m |
| Accuracy | ±(2mm+2mm*D)m.s.e |
| Non-prism Range | 1,500m |
| Accuracy | ±(3mm+2mm*D)m.s.e |
| Measuring Time | Fine: 0.3s; Normal: 0.2s |
| Meteorologic Correction | Auto Sensor |
| Prism Constant | Manual |
| ANGLE | |
| Accuracy | 2” |
| Method | Absolute Encoding |
| Detecting System | H: dual; V: dual |
| Minimum Reading | 1”/5”/10” |
| Diameter of Circle | 79mm |
| Vertical Angle 0° | Zenith: 0°; Horzontal: 0° |
| Unit | 360°/400gon/6400mil |
| DISPLAY | |
| Display Unit | 240*160 with backlight, 8 lines |
| No. of Displays | 2 |
| Keyboard | Alphanumeric |
| GUIDE LIGHT | |
| Type | Red+yellow flashing LED |
| Working Range | 150m |
| PLUMMET – LASER | |
| Type | Class II red laser |
| Accuracy | <0.4mm @ 1.5m height |
| Spot Diameter | <1.5mm @ 1.5m height |
| – OPTICAL | *optional |
| Image | Erect |
| Magnification | 3X |
| Foucing Range | 0.3m – ∞ |
| Field of View | 5° |
| TILT CORRECTION | |
| Tilt Sensor | Dual axis |
| Method | Liquid electric |
| Range | 4’ |
| Resolution | 1” |
| LEVEL | |
| Plate Level | 30”/2mm |
| Circular Level | 8’/2mm |
| DATA INTERFACE | |
| Internal Memory | > 10,000 points |
| Data Interface | USB2.0 |
| Wireless | Bluetooth 2.1, WT12 |
| GENERAL | |
| Quick-meas Button | Yes |
| Weight | 5.4kg |
| Dimension | 353 (H) * 206 (L) * 200 (W) mm |
| Operating Temperature | -20°C to 50°C |
| Battery | Li-on battery, 7.4V, 3000mAh |
| Water & Dust Proof | IP55 |
| Working Duration | 16h |
